Swapped out the solenoids on the winch pack and obviously I did something wrong. Winch goes out now and doesn't stop..... UGH!
Cottontail
Three-De Off-Road
- Location
- Nashville, TN
Never looked at actually buying one!!
Preach on, Andy!
Besides, $3 saved is almost a full gallon of gas!
POLAR_JEEP_04
NAXJA Forum User
- Location
- Ohio
Homemade is cool. I got mine for free though lol
- Location
- Hartsville, South Carolina
I keep a valve core removal/valve stem installer tool in my jeep.
SC Rednek
NAXJA Forum User
- Location
- Winchester TN
yeah there's one of those tools in the little tire repair kits you get at autozone. it's also good to carry a couple spare cores, with all the airing up and down we do I've had them go bad before
Get your winch solenoids figured out yet?
Get your winch solenoids figured out yet?
- Location
- Hartsville, South Carolina
No I'll look at it when I can. Have other projects that need addressing. I probably have the wires crossed or installed on backwards.
Lowrange2
NAXJA Forum User
- Location
- Abbeville, SC
It's an M8000?
This is the diagram I used to wire mine up.
This is the diagram I used to wire mine up.
- Location
- Hartsville, South Carolina
It's an M8000?
This is the diagram I used to wire mine up.
Yea It is a M8K but mine has green and green yellow wires and black. I'll find that and look back at it. I think one of the solenoids got installed upside down. Need to look at the site I bought them from and see what pin is for what.
Lowrange2
NAXJA Forum User
- Location
- Abbeville, SC
Here, this is mine.
This orientation is wrong. The two on the left are correct. The two on the right need to be rotated 180*.
- Location
- Hartsville, South Carolina
Here, this is mine.
This orientation is wrong. The two on the left are correct. The two on the right need to be rotated 180*.
Are you saying that all the solenoids need to be with the I up and the S down? Is I initiate and S ground?
- Location
- Middle Tennessee
Saw Def Leppard and Kiss last night at the Bridgestone Arena. It was a great show.
Lowrange2
NAXJA Forum User
- Location
- Abbeville, SC
It's not as simple as hot and not. You're reversing polarity when you go in and out.
As long as you have them in the correct orientation and put the wires in the same orientation it'll be fine.
Pop the cover off the box, take some good pictures of it that show wire colors and send it to me.
One of the colored wires should have 4 ring terminals on it. Those 4 ring terminals go to the 4 inside small posts. Your other two wires should have 2 ring terminals on each wire. One wire goes to the top right small post and the bottom left small post. The other wire is opposite the first one.
Last edited:
Lowrange2
NAXJA Forum User
- Location
- Abbeville, SC
Here:
Your colors vary but just pay attention to which wires have which ring terminals.
(You do have the 3 wire controller, right?)

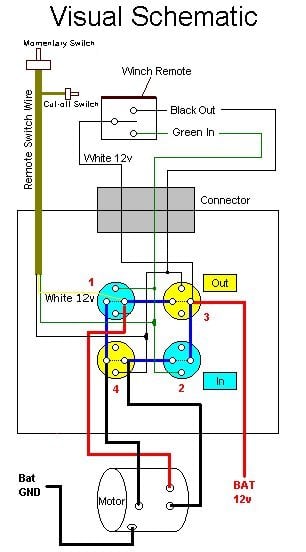

Here's a better diagram:
Your colors vary but just pay attention to which wires have which ring terminals.
(You do have the 3 wire controller, right?)
Here's a better diagram:
Last edited:
- Location
- Harrisburg, NC
Nice! I bet that was a good show!
Lowrange2
NAXJA Forum User
- Location
- Abbeville, SC
Did anyone pour any sugar on you?
- Location
- Hartsville, South Carolina
Here:
Your colors vary but just pay attention to which wires have which ring terminals.
(You do have the 3 wire controller, right?)
Here's a better diagram:
Yea I have the 3 wire controller. I'll check those against what I have and see if I can get ti working right. Thanks.
Lowrange2
NAXJA Forum User
- Location
- Abbeville, SC
Right.
Do that and while you're at it you can tap into the green and black wire and run a switch into your cab so you can operate the winch from the drivers seat.
- Location
- Hartsville, South Carolina
My controller is in the cab. :cheers:
- Location
- Middle Tennessee
Unfortunately, no.
