UNUSUAL COIL SPRING ISSUE. HELP.
- Thread starter Intellect
- Start date
Intellect
NAXJA Forum User
- Location
- Tampa Florida
Well i measured my caster. same on both sides. so thankfully no spun tube. checked and measured countless things. No bent drop brackets or arms or anything. At a loss now. Ended up hitting the top of the coil with a bfh when it was half drooped with tire off, and when i put it all back together it doesnt touch the coil anymore. Still looks slightly off and coil has a bend to it. But at this point theres not a single thing i didnt check try or do.
RCP Phx
NAXJA Forum User
- Location
- Phoenix,Az
You need bumpstops !!!
N8N_99xj
NAXJA Forum User
- Location
- Curtis Bay, MD
you *sure* the bumpstop tower isn't bent?
Intellect
NAXJA Forum User
- Location
- Tampa Florida
95 percent sure. not exactly sure how to tell or know. Looks fine.
- Location
- San Diego
it is very common to have bowed/offset coils that do not align the same way at 5" of lift and above.

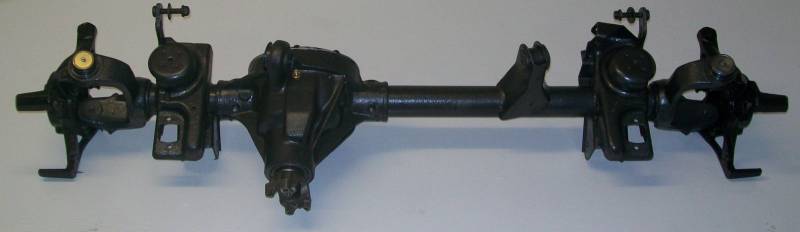

the coil buckets are not symmetrical at the axle. the passenger side is flipped 180*
also. control arm length does not matter. ignore the measurements. the likelihood of the CA mounts being exactly the same on both sides of the rig is very low.
ensure the axle is square to the frame. easiest way is to take it to an alignment shop that has a laser alignment machine. slightly more complicated is to use a plumb bob hanging off the unibody and. but you'll need to find 2 places that are the same on both sides of the frame, which can be challenging on a cherokee.
I would bet that your axle isn't quite square, and since you've rotated the pinion up the additional offset of the coil buckets is causing your issue.
adjust the lowers to set the axle square. if they are not exactly the same measurement it is not important.
then set the pinion angle with ONE uca. once thats done, adjust the other upper so the bolt can slide in easily. once again, length of the arm doesn't matter. not binding the bushings is key here.
a bent bumpstop tower is also a strong possibility.
I would also replace your upper coil isolators. those wear out and cause the coils to sit uneven.
the coil buckets are not symmetrical at the axle. the passenger side is flipped 180*
also. control arm length does not matter. ignore the measurements. the likelihood of the CA mounts being exactly the same on both sides of the rig is very low.
ensure the axle is square to the frame. easiest way is to take it to an alignment shop that has a laser alignment machine. slightly more complicated is to use a plumb bob hanging off the unibody and. but you'll need to find 2 places that are the same on both sides of the frame, which can be challenging on a cherokee.
I would bet that your axle isn't quite square, and since you've rotated the pinion up the additional offset of the coil buckets is causing your issue.
adjust the lowers to set the axle square. if they are not exactly the same measurement it is not important.
then set the pinion angle with ONE uca. once thats done, adjust the other upper so the bolt can slide in easily. once again, length of the arm doesn't matter. not binding the bushings is key here.
a bent bumpstop tower is also a strong possibility.
I would also replace your upper coil isolators. those wear out and cause the coils to sit uneven.
N8N_99xj
NAXJA Forum User
- Location
- Curtis Bay, MD
Assuming your "frame" is not bent a rough measurement would be to take a tape measure and measure back from the end of the sway bar. If that's way off try to find a point on the "frame" that is symmetrical and measure from there.
- Location
- REDLANDS, CA. (SoCal)
Just a thought:
Some shops have like a 90 warranty on alignments, mine does. See if you can take your rig in, have them do what they can and find out what may be going on. Address the problem and then go back and have it dialed in.
Some shops have like a 90 warranty on alignments, mine does. See if you can take your rig in, have them do what they can and find out what may be going on. Address the problem and then go back and have it dialed in.
- Location
- Lafayette, CA
- Location
- San Diego
Wait, wat?
take a look at the groove where the coil sits.
Intellect
NAXJA Forum User
- Location
- Tampa Florida
Bump.. time for 488s , ive learned so much since i started this thread, but want to make sure my d30 isnt messed up before i blow money on gears, shafts, possibly a locker, and an over the axle track bar.
Intellect
NAXJA Forum User
- Location
- Tampa Florida
Ive taken measurements gallore regarding the bumpstop towers and i believe those are strait.. ive just assumed ive had a bent tower for a year lol.
