Cone Filter Heat Shield

[cj11]

Hey MX Thanks Thanks for the help with posting the pics I can not get the pics to work but i can put up the links which I guess works. I dont know how far you live from me but if you want use the template to make one let me know not the best looking but looks better then some of the other stuff i saw



[cher96]

I had a k&n in the stock swithed back to the that set up a couple of days ago and could feel the differance lost some power and pick up went hell.
That is why I went back to the cone and thought the Shield would help block some heat and dirt.

Here are some more pics The paint is on waiting to dry will post more pics when it is all done and installed

http://i844.photobucket.com/albums/ab6/cb1225/intakeshield2.jpg
http://i844.photobucket.com/albums/ab6/cb1225/intakeshieldmount.jpg

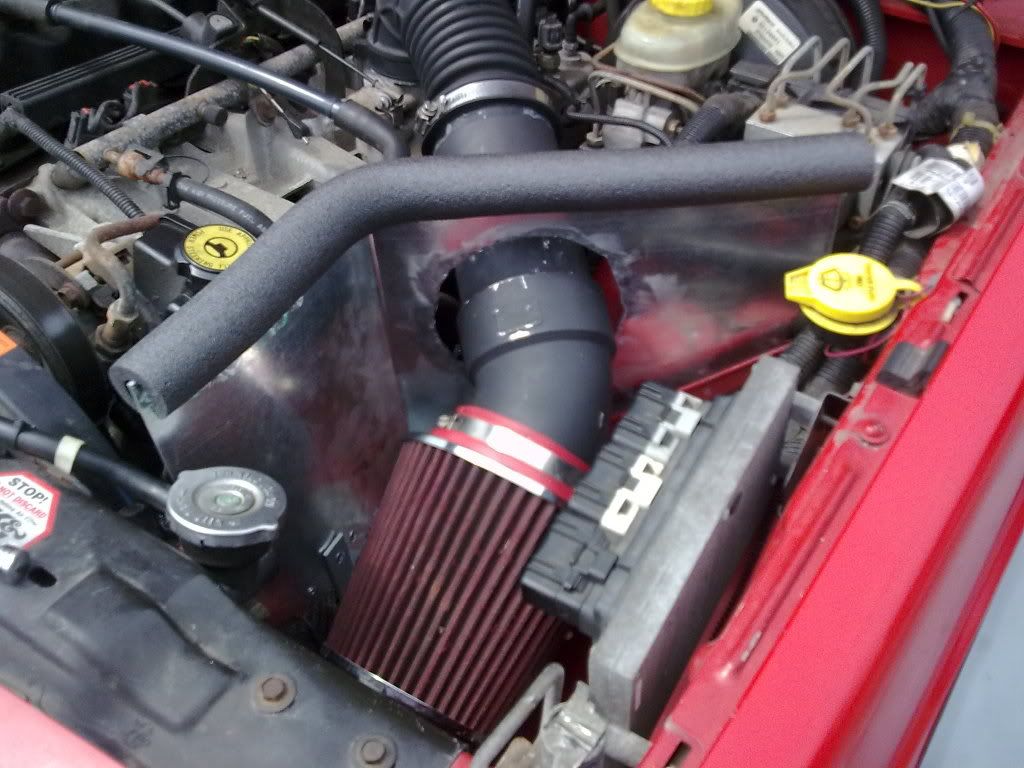

http://i844.photobucket.com/albums/ab6/cb1225/intakeshield1.jpg

The first Photo didn't work for me.
The third Photo is Awesome. It looks Great IMHO.

cher96 Vicki



[cj11]

Thanks. The first photo I deleted by accident



[stephenspann27]

I had a k&n in the stock swithed back to the that set up a couple of days ago and could feel the differance lost some power and pick up went hell.
That is why I went back to the cone and thought the Shield would help block some heat and dirt.

Here are some more pics The paint is on waiting to dry will post more pics when it is all done and installed

http://i844.photobucket.com/albums/ab6/cb1225/intakeshield2.jpg
http://i844.photobucket.com/albums/ab6/cb1225/intakeshieldmount.jpg
http://i844.photobucket.com/albums/ab6/cb1225/intakeshield1.jpg

That looks good.



[TYphoon]

I had a k&n in the stock swithed back to the that set up a couple of days ago and could feel the differance lost some power and pick up went hell.
That is why I went back to the cone and thought the Shield would help block some heat and dirt.

Here are some more pics The paint is on waiting to dry will post more pics when it is all done and installed

Okay your links are right, but when u go to post it click the little landscape picture above (on ) and put the link in there. Then they will show up. When I quote you, I change it to that. Looks sweet man. I am gunna tackle this project sooon



[TYphoon]

Notice any power difference?



[cj11]

After the shield or from the stock box.



[cj11]

Drove for about a half an hour to work with the new shield and the filter was much cooler the it normaly is dont know if it feels any better the without the shield. But it has to be taking in cooler just by touch.

Thinking of putting a little scoop over the box to pull cooler air in any imput on this would be cool.

Will post pics of finished product later.:roll:



[TYphoon]

After the shield or from the stock box.

After the shield.

I made a really ghetto one yesterday that needs to be cleaned up. I wont post pictures because frankly I am embarrased :laugh3:



[cj11]

It makes all the diff like I said the filter feels much cooler after driving It is takin in more cool air when moving. When you let it idol it still gets hot because the shield heats up I will put dyno mat on the outside soon.

If you want the template let me know. If you follow it it comes out good and seals nice.



[TYphoon]

It makes all the diff like I said the filter feels much cooler after driving It is takin in more cool air when moving. When you let it idol it still gets hot because the shield heats up I will put dyno mat on the outside soon.

If you want the template let me know. If you follow it it comes out good and seals nice.

Yeah I might want that actually. I will let you know about it



[cj11]

Well here is the final product the only thing I will change is the seal along the top I ordered a seal kit form K&N Sould be here soon.



[cj11]

Thanks for all the help MX finaly figured out ho to post pics.

Some one else was asking for the template so let me know if you want it or not. I may try to make some paper templates if any one is interested.
For a hack like me this worked out damn good.



[cj11]

Template Made will post pics tonight
