durango steering gear pictures

[kndrewa]

i upgraded my laggy and strained steering gear with a unit out of a 99 dodge durango.
its a direct swap and only requires a few special tools:
1.) a pitman arm puller
2.) a torque wrench that can be dialed to 185 ft/lbs.
________________
________________

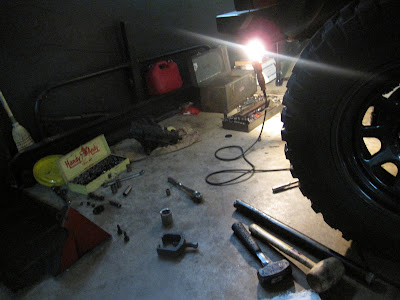

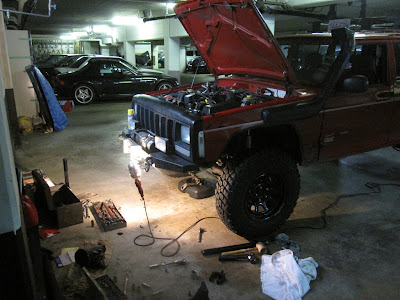

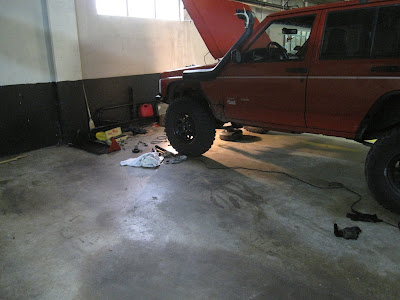

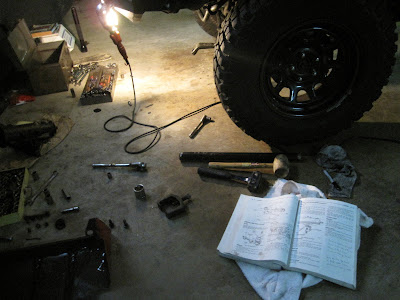

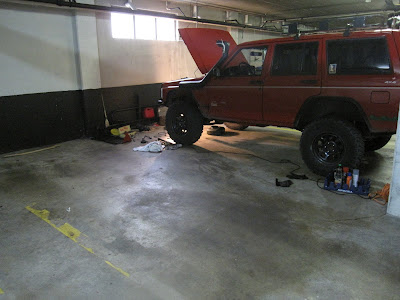

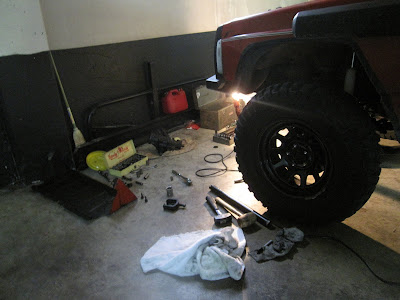

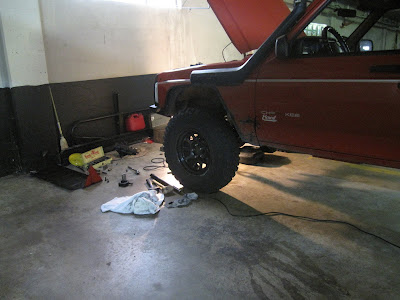

WORK AREA
________________
________________



[kndrewa]

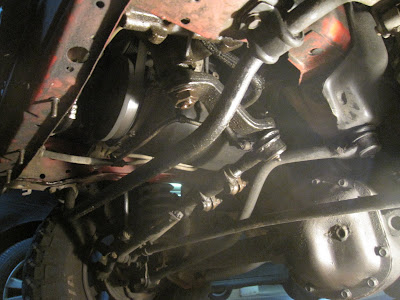

my steering had a lot of play in it.
a few inches of movement in either direction with the steering wheel.
THEN the vehicle would start to respond.

it was not good.
it had seen a blown hi-pressure line from the power steering pump.
it was in need of new o-rings, seeping fluid from several seals.

anytime a part fails on my Jeep, i research possible upgrades.
this helps to increase the durability and reliability of my vehicle.

a failed part must be replaced, so its a good time to upgrade.
upgraded parts exist to address the causes of common failures.
this will help to prevent future failure of the same part.



[kndrewa]

________________
________________
DURANGO STEERING GEAR ACQUISITION
________________
________________

the 1999 Dodge Durango uses a very similar steering gear to my 1997 Jeep Cherokee.
it is stronger and results in firmer, more solid steering.
it mounts exactly the same and all of the fittings are identical.
however, it has a slightly larger worm gear.
this makes for a stronger unit.

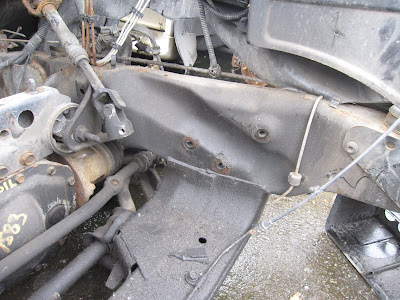

this is a Durango in the salvage yard with the steering gear removed.
it mounts with the same 3 bolts as on the jeep cherokee's frame.
somebody beat me to this one!

a salvage yard find may have problems.
its hard to verify its condition.
the accident could have tweaked it.
it could have water inside and need rebuilt.

i got my Durango steering gear as a re-manufactured unit from NAPA.
the extra cost was worth the peace of mind for me.



[kndrewa]

________________
________________
GAIN ACCESS TO STEERING GEAR
________________
________________

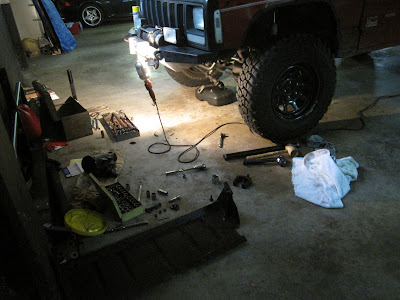

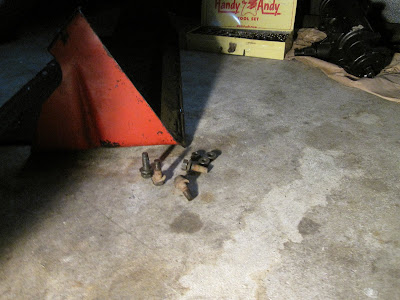

in order to access the steering gear, i needed to remove my front skid plate.
a few nuts and bolts hold it in place.

with the skidplate removed you can see the engines oilpan and crank pulley.
notice the greasy mess on the steering components.
road grime and dirt accumulated on the seeping power steering fluid.

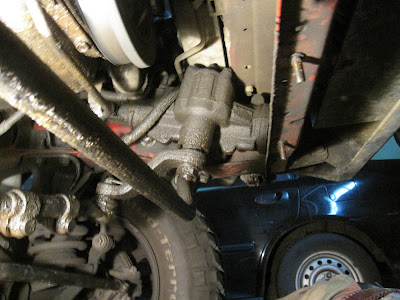

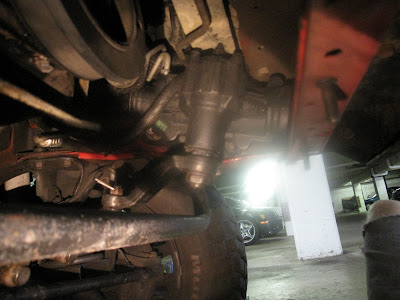

here is the steering gear.
it is a mess!
you can see the pitman arm which controls the steering linkages.
the pitman arm is the 'flat S' shaped linkage.
it will need to be removed using a puller.

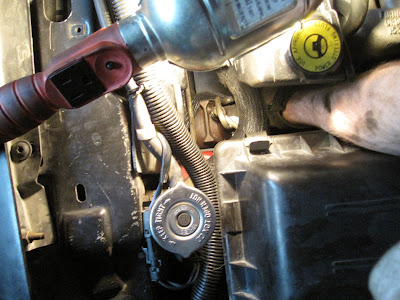

here is a view from the engine compartment looking down.
the steering gear has an 'I' shape cast into it in the center of this photo.
to the right of the 'I' are the two silver high pressure lines in an 'X' shape.
further to the right is a pitchfork-shaped linkage, the column coupler shaft, which goes to the steering wheel.

here is a better view of the column coupler shaft.



[kndrewa]

________________
________________
DISCONNECT HIGH PRESSURE LINES
________________
________________

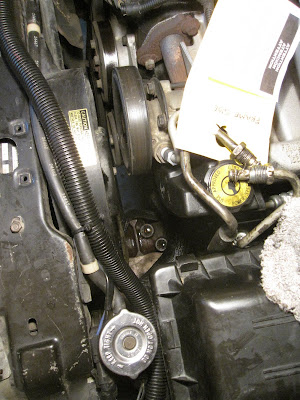

the high pressure lines are held in place with an 18mm collar.

even though the lines are different thread diameters, i marked them.
i put a tag for the closest to 'Frame Side' for easy installation.

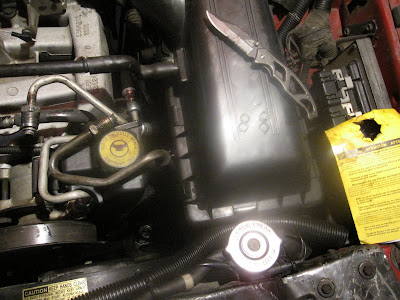

then, i secured the high pressure lines out of the way.



[kndrewa]

________________
________________

DISCONNECT COLUMN COUPLER SHAFT
________________
________________

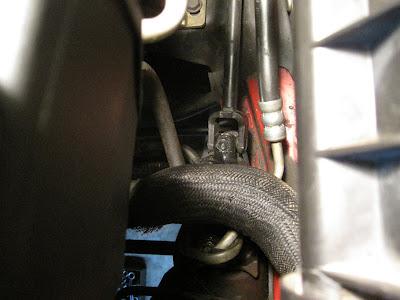

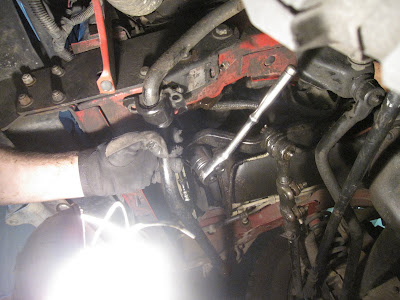

here is a view of the steering column coupler shaft.
a 13mm bolt holds it to the steering gear input shaft.



[kndrewa]

________________
________________
REMOVE PITMAN ARM
________________
________________

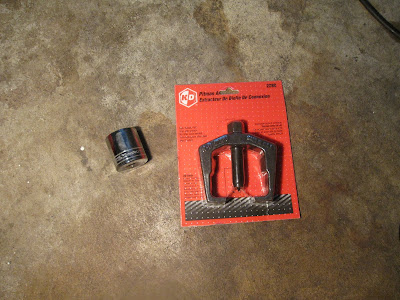

this step required two new tools for me.
a 32mm socket and a pitman arm puller.

i couldn't get the socket to seat because the swaybar was in the way.

i removed the two bolts that hold the swaybar to the frame on this side.
now the swaybar could be pulled out of the way of the pitman arm nut.

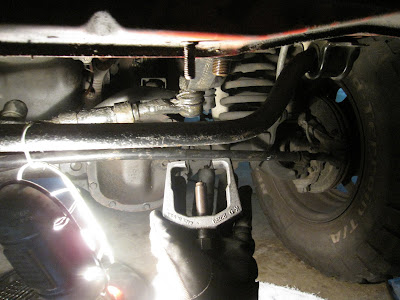

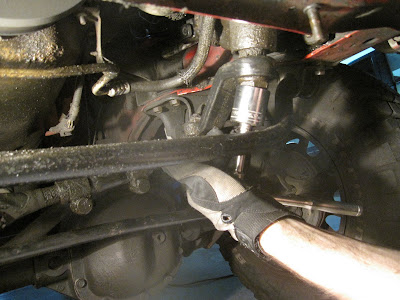

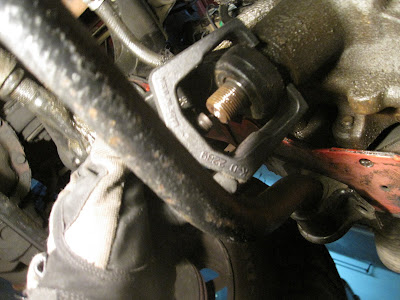

after the nut is off, its time to use the pitman arm puller.

the puller remains centered in the pitman shaft divot.
the puller screw is tightened until the pitman arm is freed.

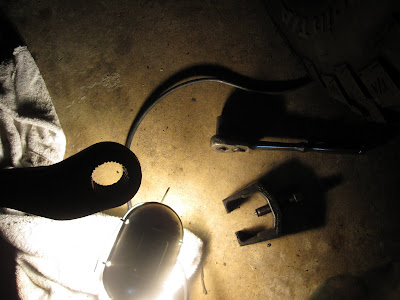

the pitman arm removal requires only a ratchet, 32mm socket and the puller.

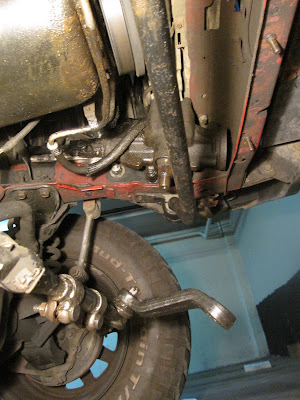

the pitman arm is removed from the steering gear.



[kndrewa]

________________
________________
REMOVE STEERING GEAR FROM JEEP
________________
________________

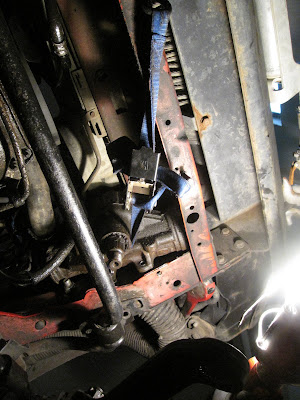

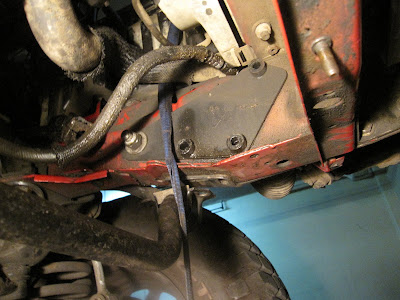

all thats left to do is unbolt the steering gear from the frame.
i used a ratchet strap to support the steering gear, its heavy.

the 3 bolts holding it in place are to the right of the red vertical support.
the mounting location is integrated through my bumper mounting plate.
this increases the rigidity and distribution of force.

here is my inner frame reinforcement plate.
this came from c-rok with my bumper to sandwich the frame.
it replaces the inferior cast stock unit.



[kndrewa]

________________
________________
COMPARISON IMAGES
________________
________________

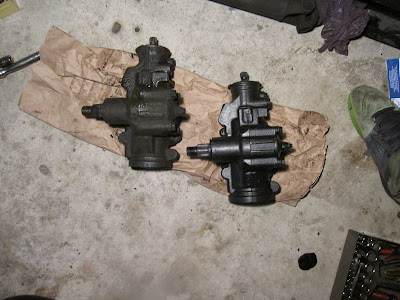

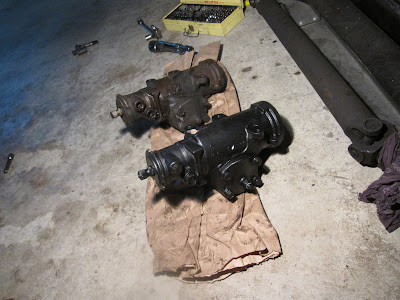

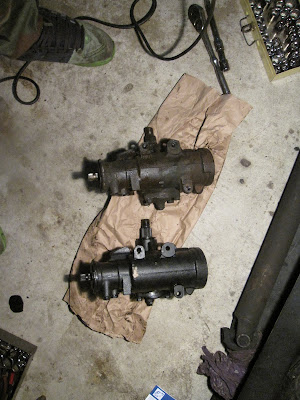

OLD jeep steering gear on top.
NEW durango steering gear on bottom.

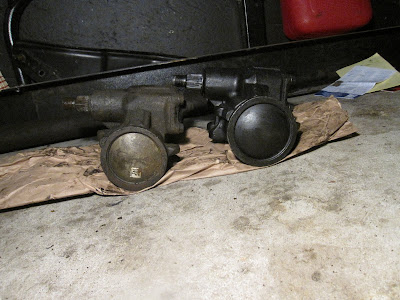

the main advantage of the dodge dakota gear is seen here.
it has a larger worm gear assembly, increasing its strength.



[kndrewa]

________________
________________
INSTALLATION
________________
________________

installation is a few simple steps.
1.) bolt the new steering gear to the frame.
2.) re-connect the steering column coupler shaft.
3.) re-connect the hi-pressure lines.
4.) cycle the gear and fill the power steering fluid resevoir.
2 new o-rings for the hi-pressure lines came with the steering gear.
good thing, because the old ones (right) were pretty worn.



[kndrewa]

________________
________________
FINAL COMPARISON
________________
________________

BEFORE: stock Jeep steering gear

AFTER: 99 Dodge Durango steering gear

the result: firm and precise steering



[JeepCherokeeGuy99]

thank you for this write up! I will definitely be upgrading next paycheck.



[MG2000XJ]

Very nice write up, will also be using this eventually. Does the Durango box make turning bigger tires easier on the steering system or is it just done for strength purposes?

Also, when putting the pitman arm back on how do you know where/how to center it up or align it on the splined steering shaft?



[kndrewa]

the durango box made my steering feel much stronger - the response is tight and firm.
i feel a much more direct connection to the tires and road.
because its got a bigger worm gear, i am lead to believe that more fluid moves through the gear with increased hydraulic strength.
i really don't know all of the hydrodynamic details.. ..but i can tell you that the steering response is improved.

i havent been on trails or up against rocks while straining the system yet.
it feels easier to turn the tires on the street, but i'll keep you informed when i hit the dirt.

as far as pitman arm alignment, the pitman shaft is notched on 4 sides, so you could only mess it up by 90 degrees.

pitman arm notch detail:
http://2.bp.blogspot.com/_A0ZMvJ9IYrc/TAsjPWhnaeI/AAAAAAAABxQ/FK1RF83Wd18/s1600/IMG_2636.jpg



[MG2000XJ]

Awesome, thanks! I know there are other threads on this but definitely let us know how it works out for you wheeling.



[jakeWI]

i will probably be ordering this with my rear disc brake stuff this coming week!



[XJ89JEEP]

I did this upgrade about a month ago and i love it. but my turning radius is a little shorter.(wont turn as sharp) but other than that i recommend it. I'm running 35's



[kndrewa]

(wont turn as sharp)

yeah, same here.
my sharp turning radius was something i bragged about before.
but the great response and solid feel and connection to the road makes up for it.



[XJ89JEEP]

yeah, same here.
my sharp turning radius was something i bragged about before.
but the great response and solid feel and connection to the road makes up for it.

Agreed.
Also i want to add - if you have your box out you might want to check out C-rok's inner and outer steering box brace. If your doing all that work, you should just do it right the 1st time.



[jdsilvaca]

Great write-up. Thank you.arty:
